2020 Caterpillar 307C








Descripción del Producto

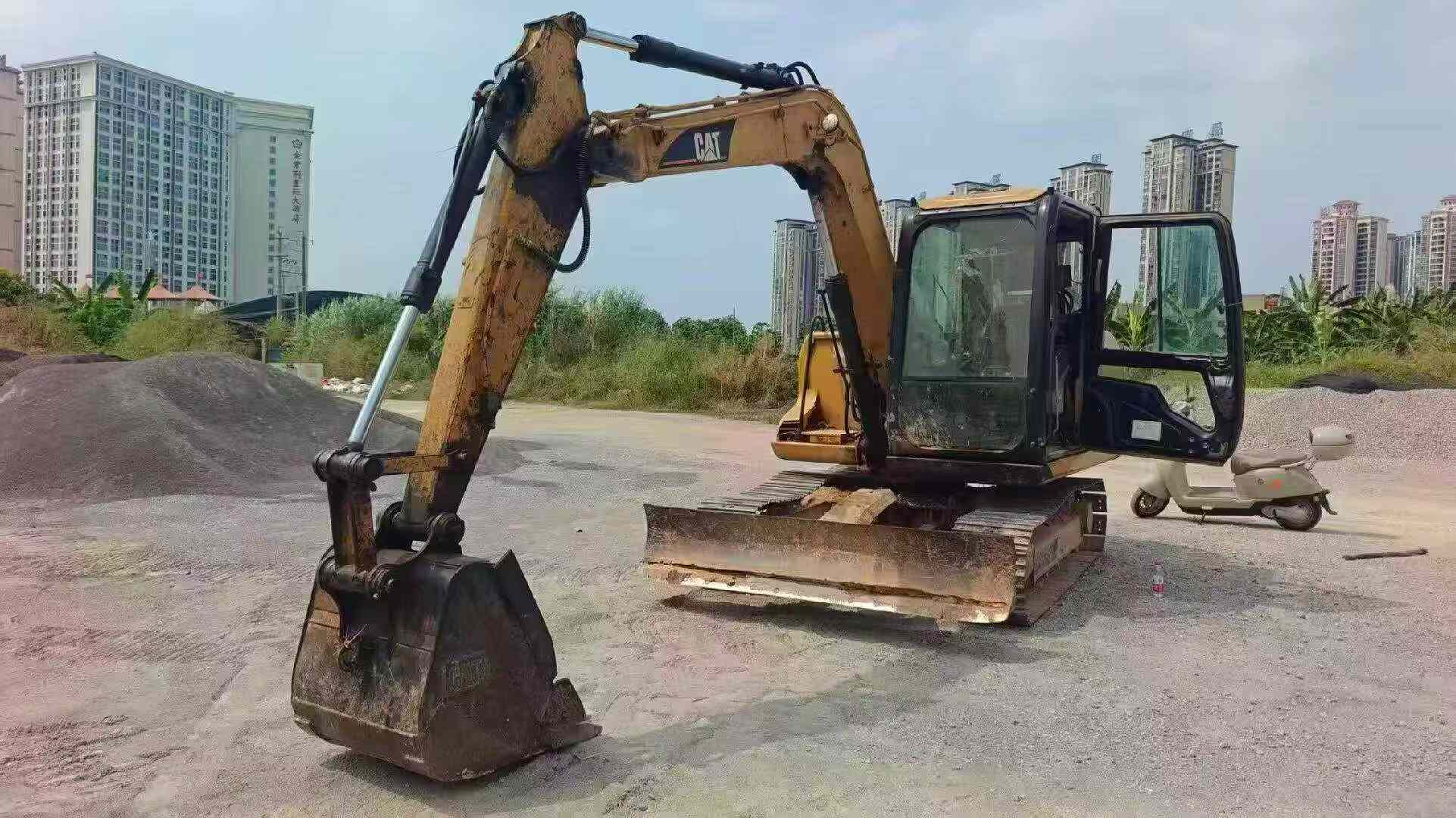

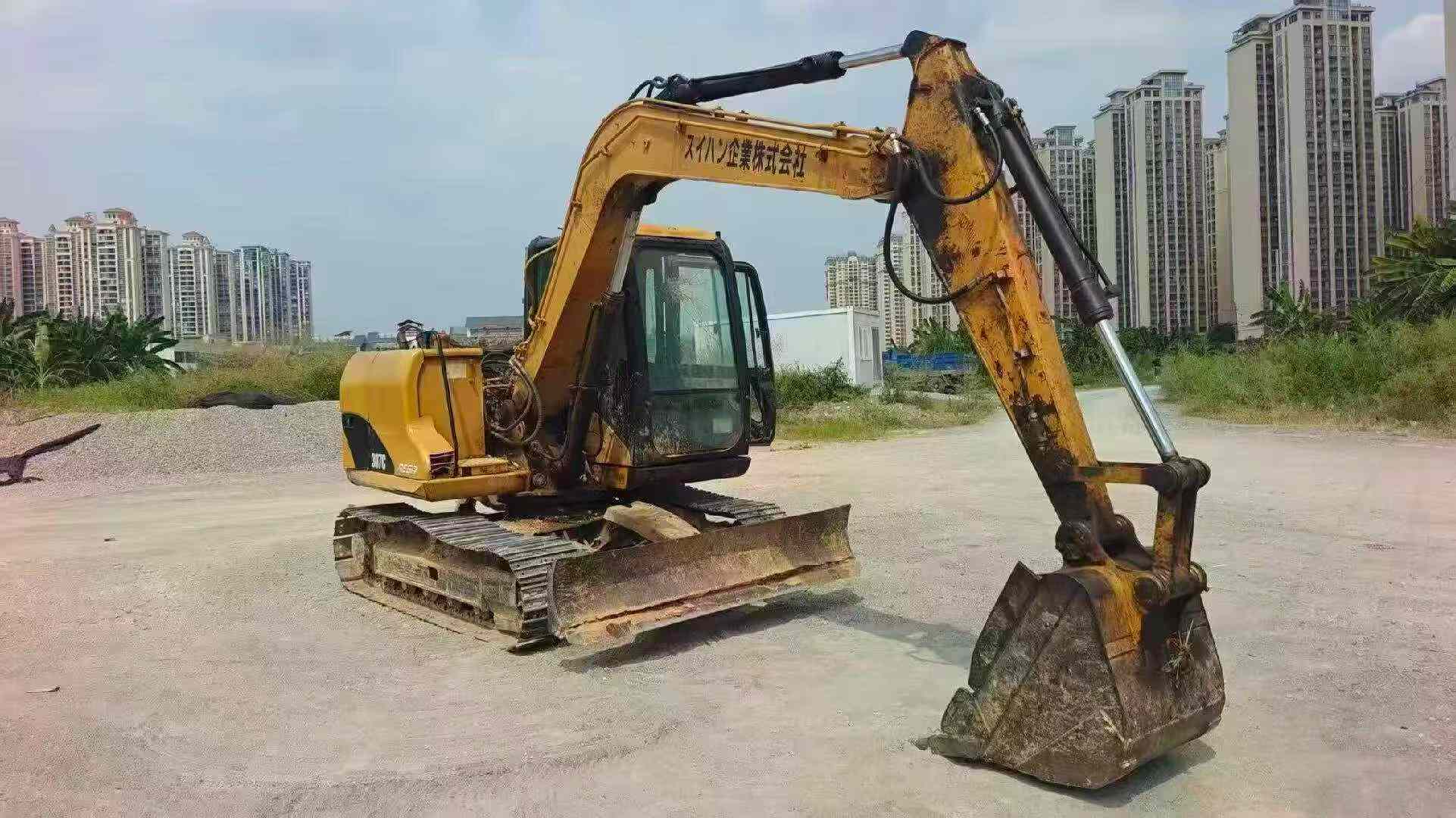

Esta excavadora hidráulica compacta Caterpillar 307C usada se ofrece desde stock en Sichuan, China. La 307C es una máquina de clase utilitaria ampliamente probada, muy utilizada en obras de todo el país para zanjeo, preparación de cimentaciones, obras municipales y movimiento de tierras ligero. La unidad figura como máquina del año 2020 y se vende con su cucharón incluido según el anuncio del vendedor.
Datos clave del anuncio:
- Marca y modelo: Caterpillar 307C
- Año: 2020, según lo publicado
- Ubicación: Sichuan, China — se puede coordinar visita e inspección
- Accesorio: cucharón incluido con la máquina
- Precio de referencia: más de RMB 50.000, negociable
Se recomienda a los compradores verificar directamente las horas de operación, los registros de mantenimiento, el estado del sistema hidráulico y el desgaste del tren de rodaje antes de comprometerse. La carga y la documentación de exportación se pueden gestionar a solicitud. Contáctenos para consultar la disponibilidad actual, fotografías detalladas y una cotización en firme.
| Especificaciones | Valor |
|---|---|
| No. | 1155143 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7210 |
| Bucket capacity (m³) | 0.31 |
| Rod length (mm) | 1665 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 4M40E1 |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 100 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.84 |
| Working form | Meet US Tier2 and EU StageII emission requirements |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Travel speed (km/h) | 3.3/5.2 |
| Maximum flow of main pump (l/min) | 64 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 31.38 |
| Rotary Hydraulic Circuit (Mpa) | 19.61 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 27.46 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 932 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 998 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 57 |
| Engine Oil changes (L) | 11.2 |
| Coolant (L) | 15.5 |
| Hydraulic System (L) | 94(including fuel tank) |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2290 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4110 |
| Maximum excavation height (mm) | 7290 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3640 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 6200 |
