Descripción del Producto

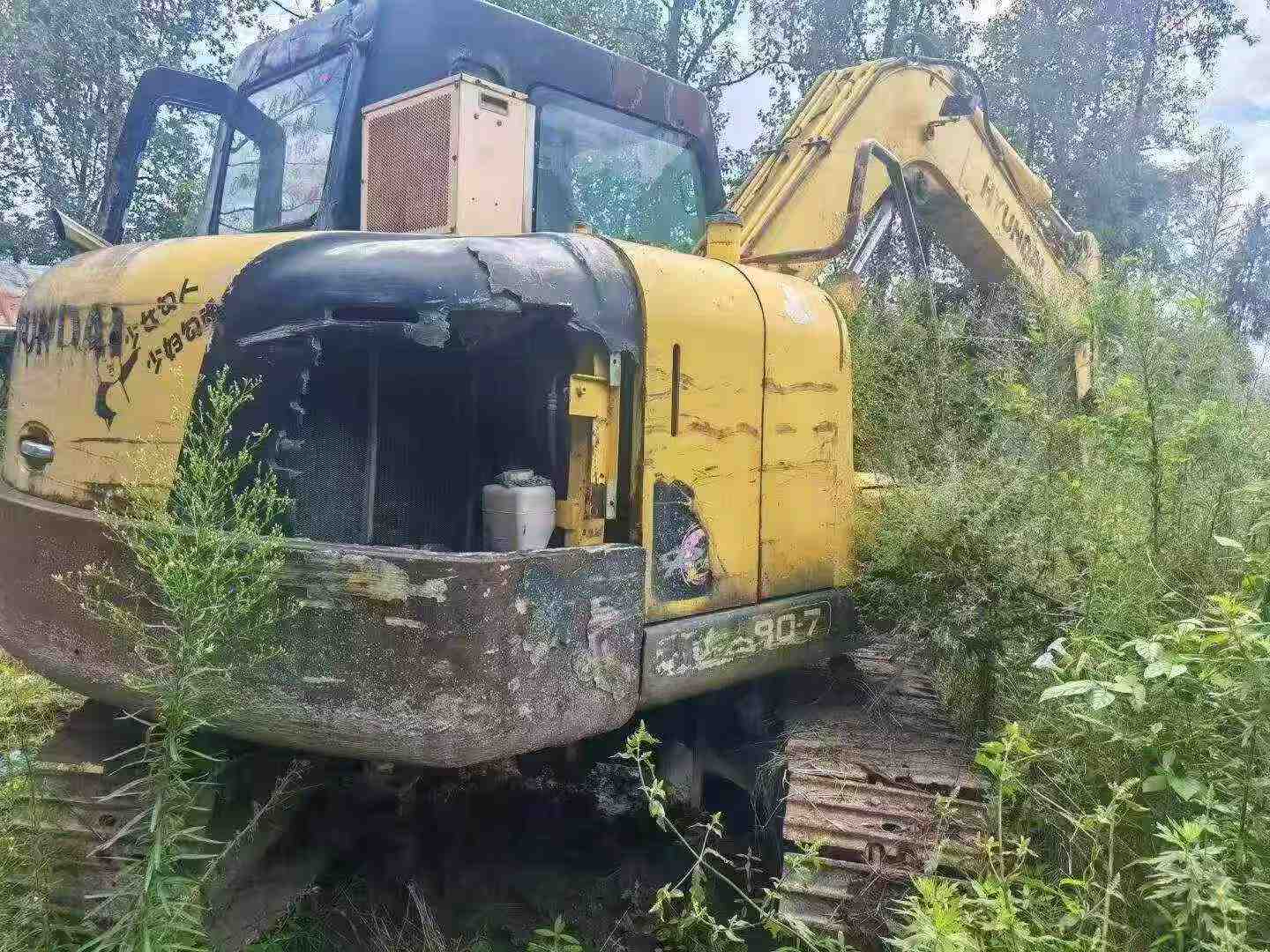

La excavadora Hyundai R80-7 de 2012 ofrece un rendimiento fiable para aplicaciones de construcción de tamaño medio y movimiento de tierras. Esta máquina de la clase de 8 toneladas incorpora el probado sistema hidráulico de Hyundai y un tren de rodaje duradero, diseñados para las exigentes condiciones de las obras. Actualmente se encuentra en Sichuan, China, y esta unidad representa un punto de entrada económico al equipo usado de calidad.
Las características principales de la R80-7 incluyen:
- Peso operativo compacto de 8 toneladas, adecuado para construcción urbana y trabajos de servicios públicos
- Motor diésel eficiente que ofrece potencia fiable y economía de combustible
- Controles hidráulicos sensibles para una operación precisa
- Construcción robusta para una vida útil prolongada
- Unidad bien mantenida disponible para despliegue inmediato
Esta excavadora Hyundai tiene un precio competitivo para el mercado internacional. Ideal para contratistas que buscan maquinaria rentable con la fiabilidad de una marca consolidada. Inspección bienvenida para compradores cualificados.
| Especificaciones | Valor |
|---|---|
| No. | 1152002 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7801.8 |
| Bucket capacity (m³) | 0.28 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 44.7 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.3 |
| Ground specific pressure (Kpa) | 32.3 |
| Rotation speed (rpm) | 12 |
| Bucket digging force (kN) | 44.1 |
| Rod digging force (kN) | 38.2 |
| Travel speed (km/h) | 4.8 |
| Rotary hydraulic motor type | Axial quantitative plunger motor |
| Type of walking hydraulic motor | Axial variable piston motor |
| Maximum flow of main pump (l/min) | 2 x 75.6 |
| Traveling Hydraulic Circuit (Mpa) | 30 |
| Rotary Hydraulic Circuit (Mpa) | 190 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 135 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 10.8 |
| Hydraulic System (L) | 130 |
| Total transport length (mm) | 6325 |
| Total transport width (mm) | 2200 |
| Total transport height (mm) | 2640 |
| Full cab height (mm) | 2640 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2130 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 3200 |
| Maximum excavation radius of stop surface (mm) | 6190 |
