Descripción del Producto

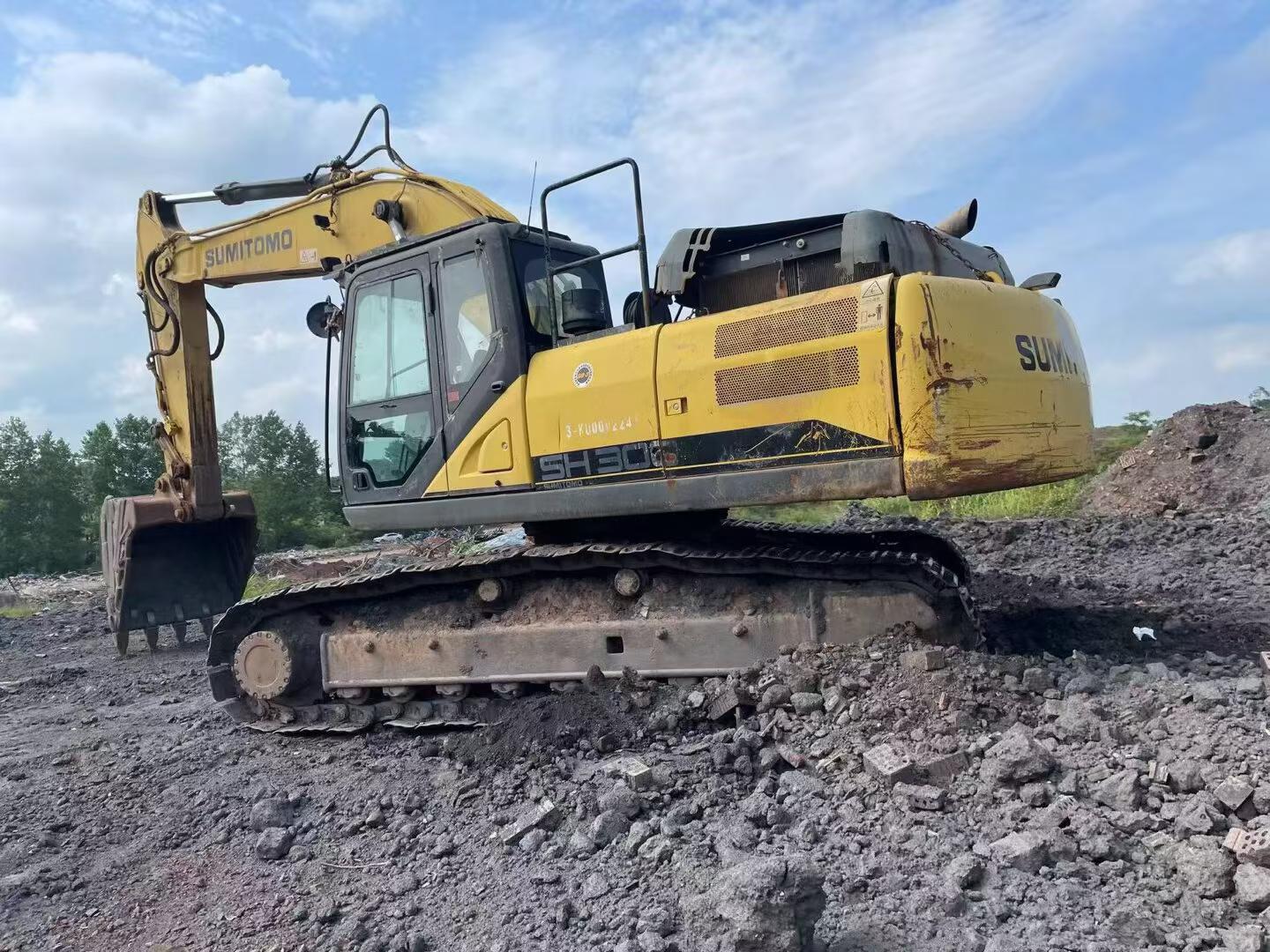

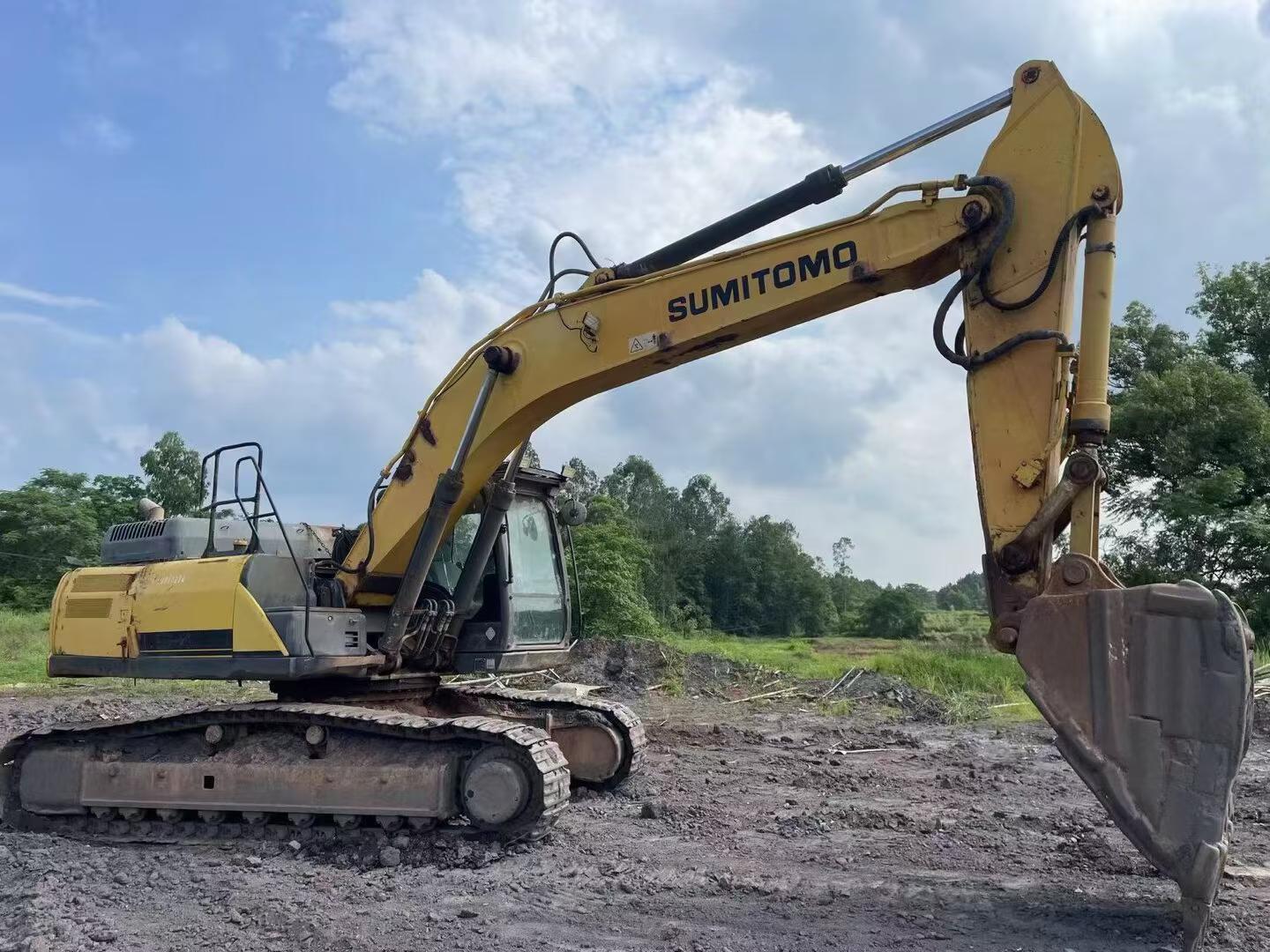

Descubra la fiabilidad y el rendimiento de la excavadora Sumitomo SH300-6 de 2018, disponible para compra inmediata. Ubicada en Guangdong, China, esta máquina se encuentra en excelente estado, habiendo sido mantenida meticulosamente. Con más de 23,000 horas de operación, ha demostrado su durabilidad y eficiencia en diversos sitios de trabajo. Imágenes detalladas y material de video están disponibles bajo solicitud, mostrando el estado actual y las capacidades operativas de la máquina. Ideal para construcciones, minería y aplicaciones de trabajo pesado, este modelo SH300-6 está listo para satisfacer las necesidades de su proyecto. Para más información o para coordinar una visita, contáctenos directamente.
- Año: 2018
- Marca: Sumitomo
- Modelo: SH300-6
- Ubicación: Guangdong, China
- Horas Operativas: 23,000+
| Especificaciones | Valor |
|---|---|
| No. | 1081048 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30900 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6100 |
| Rod length (mm) | 3100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

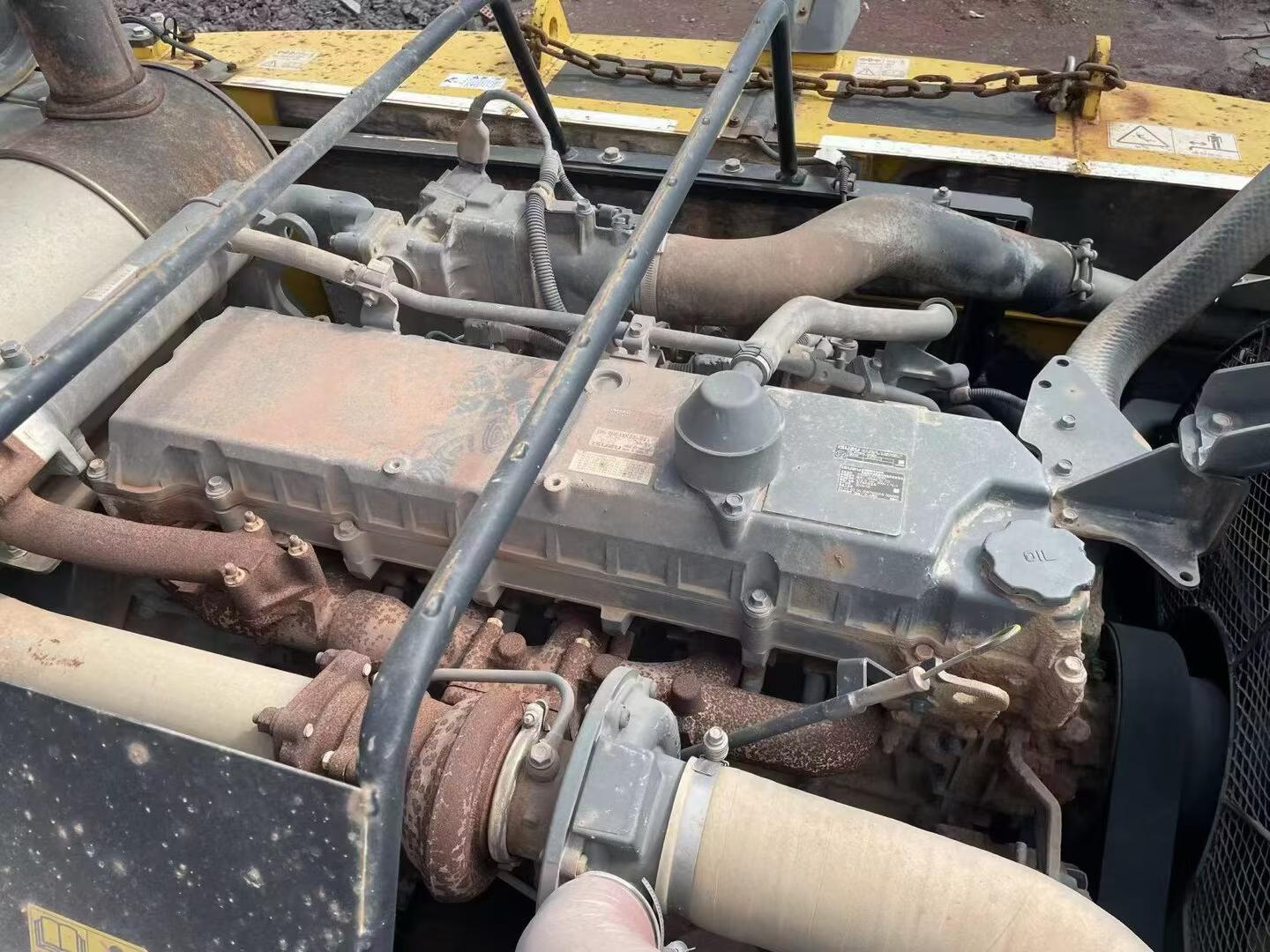

| Engine type | Isuzu GH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 186/202 |
| Rod digging force (kN) | 131/142 |
| Travel speed (km/h) | 5.2/3.1 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 147 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10520 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3490 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1220 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4000 |
| Back end turning radius (mm) | 3160 |
| Onboard width (mm) | 2930 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3720 |
| Maximum digging radius (mm) | 10670 |
| Maximum digging depth (mm) | 7020 |
| Maximum excavation height (mm) | 10100 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5530 |
