Descripción del Producto
Descubra la Volvo EC55D de 2020, una excavadora compacta robusta y fiable disponible en Zhejiang, China. Esta máquina, con un precio de poco más de 40.000, ofrece una excelente relación calidad-precio para proyectos de construcción y excavación. Conocida por su durabilidad y eficiencia, la EC55D incorpora características que aumentan la productividad y la comodidad del operador. Ideal para una gran variedad de tareas como excavar, izar y nivelar, esta excavadora es una incorporación versátil para cualquier flota. Invierta en calidad y rendimiento con este modelo Volvo de segunda mano en excelente estado.
- Año: 2020
- Marca: Volvo
- Modelo: EC55D
- Ubicación: Zhejiang, China
- Precio: Poco más de 40.000
| Especificaciones | Valor |
|---|---|
| No. | 1160653 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5400 - 5630 |
| Bucket capacity (m³) | 0.2 |
| Boom length (mm) | 1540 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

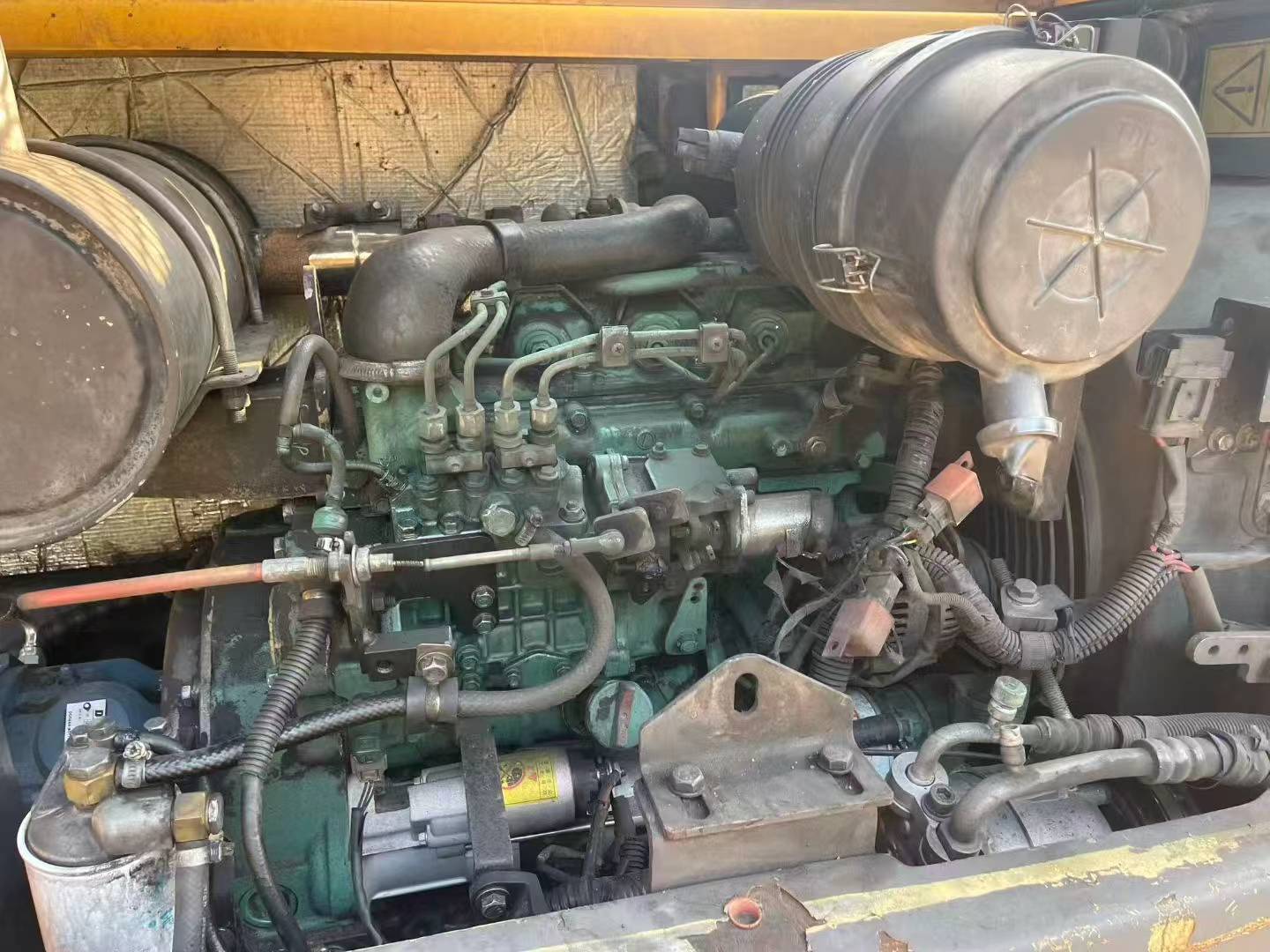

| Engine type | Volvo D2.6A |
| Rated power (kw/rpm) | 36.5/2000 |
| Cylinder diameter × stroke (mm) | 87 x 110 |
| Maximum torque (N.m) | 210 / 1 000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Rotation speed (rpm) | 9 |
| Bucket digging force (kN) | 40 |
| Rod digging force (kN) | 26 |
| Maximum tractive force (kN) | 43 |
| Travel speed (km/h) | 2.6 / 4.3 |
| Turning torque (Nm) | 11 |
| Main overflow set pressure (Mpa) | 21.6 |
| Maximum flow of main pump (l/min) | 2 x 55 |
| Traveling Hydraulic Circuit (Mpa) | 20.6 |
| Rotary Hydraulic Circuit (Mpa) | 18.6 |
| Pilot pump flow (L/min) | 1 x 9 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 7.8 |
| Hydraulic System (L) | 130 |
| Total transport length (mm) | 5885 |
| Total transport width (mm) | 1920 |
| Full cab height (mm) | 2560 |
| Counterweight ground clearance (mm) | 690 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 2360 |
| Onboard width (mm) | 1840 |
| Total track length (mm) | 2500 |
| Track plate width (mm) | 380 |
| Track ground length (mm) | 1950 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6110 |
| Maximum digging depth (mm) | 4000 |
| Maximum excavation height (mm) | 5770 |
| Maximum unloading height (mm) | 4090 |
| Maximum vertical digging depth (mm) | 2620 |
| Maximum excavation radius of stop surface (mm) | 5980 |
